Field Visualization Project

Problem Description

The goal of this project is to illustrate the reconstruction of a spatial field from scattered sample points. We focus on two example datasets:

• Three Clusters: Three localized regions of high and low values.
• Zero Grid with Three Clusters: Clusters embedded into a uniform zero-value grid.

This project shows how inverse distance weighting (IDW) can reconstruct a surface from scattered points.

Solution Approach

The solution consists of Python scripts that:

1. Generate the datasets (CSV files) deterministically using random seeds.
2. Produce scatter plots to visualize the sampled points.
3. Reconstruct the field surface using IDW and render a 3D surface plot.
4. Organize results in a reproducible project structure.

We implemented modular functions to generate clusters, overlay grids, write CSVs, plot scatter points, and reconstruct surfaces.

Visualization Results

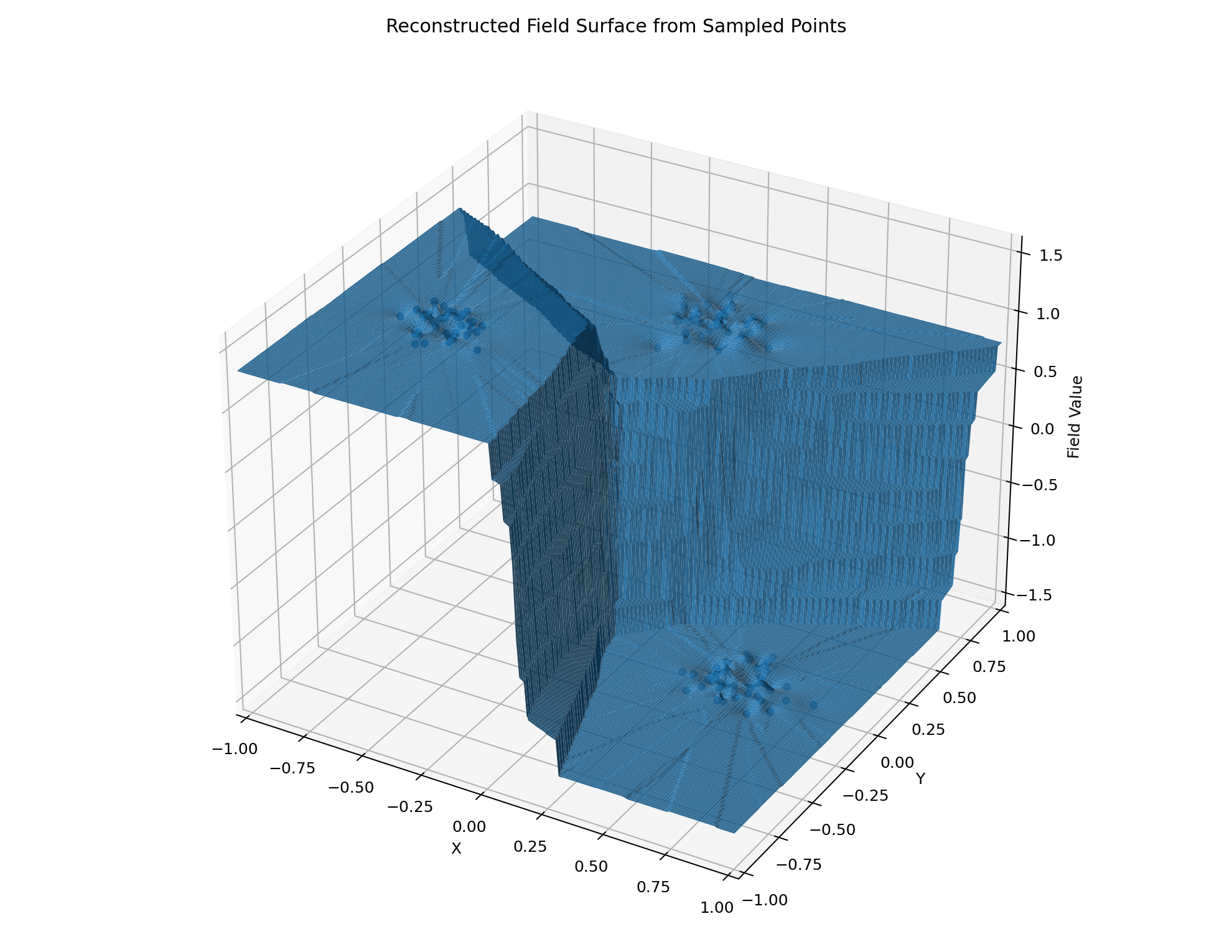

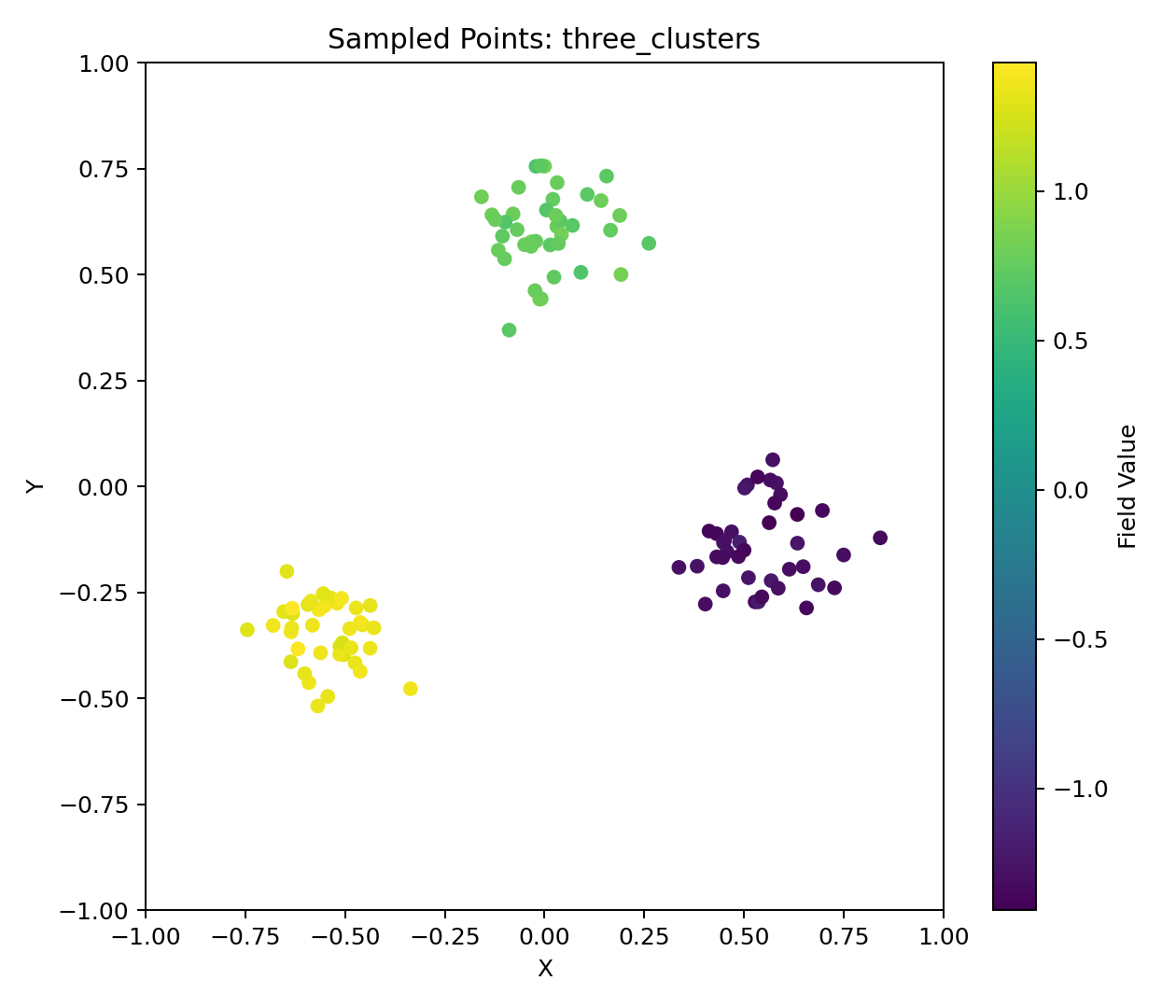

Three Clusters Example

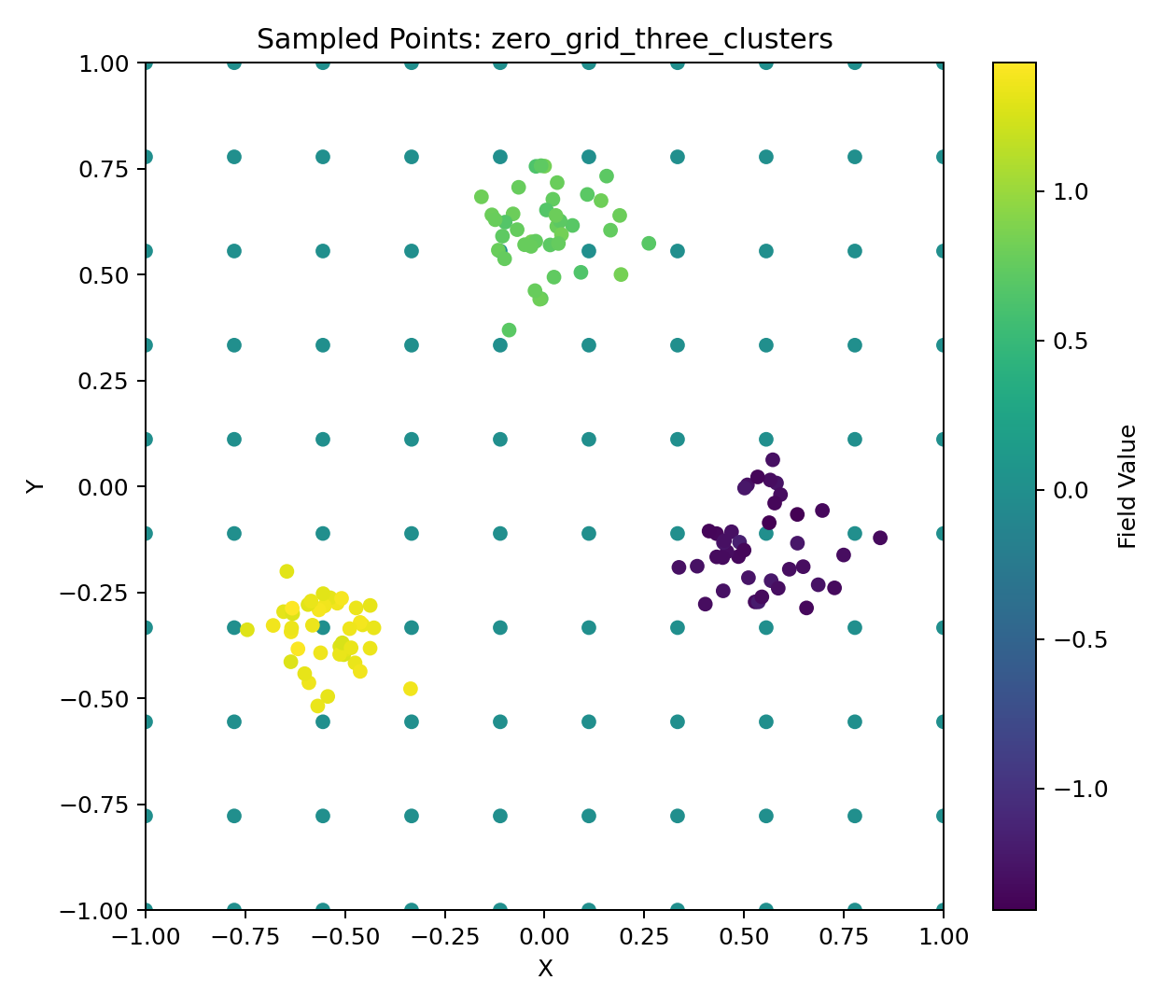

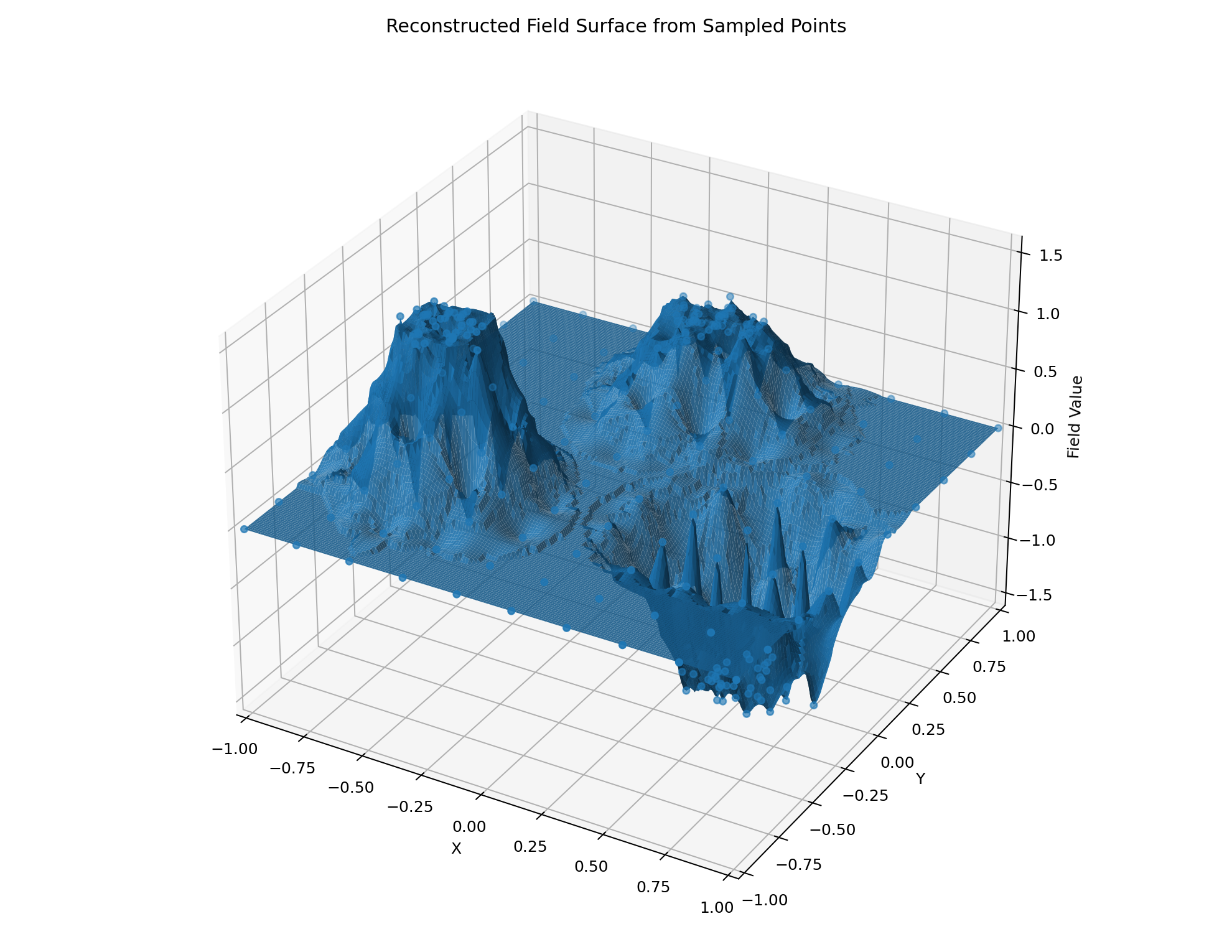

Zero Grid + Three Clusters Example

How It Works

The field reconstruction algorithm uses Inverse Distance Weighting (IDW) to interpolate scattered points onto a grid. Each grid point is estimated as a weighted average of nearby sampled points, with weights inversely proportional to distance raised to a power.

Steps:

1. Load scattered points from CSV.
2. Build a KD-tree for fast nearest neighbor search.
3. For each grid point, find nearest neighbors and compute weighted average.
4. If a grid point exactly coincides with a sampled point, its value is used directly.
5. Render the grid as a 3D surface plot and overlay the scatter points.

This approach smoothly reconstructs the field while respecting local variations.

Example Visualizer Code

#!/usr/bin/env python3
from __future__ import annotations

import argparse
from pathlib import Path

import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
import numpy as np
from scipy.spatial import cKDTree


def load_points(path: str | Path):
    data = np.genfromtxt(path, delimiter=',', names=True)
    x = np.asarray(data['x'], dtype=float)
    y = np.asarray(data['y'], dtype=float)
    values = np.asarray(data['value'], dtype=float)
    return x, y, values


def build_idw_interpolator(x, y, values, neighbors=8, power=2.0, eps=1e-12):
    points = np.column_stack([x, y])
    tree = cKDTree(points)
    k = max(1, min(int(neighbors), len(points)))

    def query(xq, yq):
        q = np.column_stack([np.ravel(xq), np.ravel(yq)])
        distances, indices = tree.query(q, k=k)

        if k == 1:
            result = values[np.asarray(indices)]
            return result.reshape(np.shape(xq))

        distances = np.asarray(distances, dtype=float)
        indices = np.asarray(indices)

        exact = distances[:, 0] < eps
        safe_distances = np.where(distances < eps, eps, distances)
        weights = 1.0 / np.power(safe_distances, power)
        weighted = np.sum(weights * values[indices], axis=1) / np.sum(weights, axis=1)

        if np.any(exact):
            weighted[exact] = values[indices[exact, 0]]

        return weighted.reshape(np.shape(xq))

    return query


def make_plot(x, y, values, output_path, grid_size=180, neighbors=8, power=2.0):
    interpolator = build_idw_interpolator(x, y, values, neighbors=neighbors, power=power)

    limit = max(np.max(np.abs(x)), np.max(np.abs(y)), 1.0)
    grid_x = np.linspace(-limit, limit, grid_size)
    grid_y = np.linspace(-limit, limit, grid_size)
    X, Y = np.meshgrid(grid_x, grid_y)
    Z = interpolator(X, Y)

    fig = plt.figure(figsize=(11, 8.5))
    ax = fig.add_subplot(111, projection='3d')
    ax.plot_surface(X, Y, Z, rstride=1, cstride=1, linewidth=0, antialiased=True, alpha=0.9)
    ax.scatter(x, y, values, s=18, depthshade=True)
    ax.set_title('Reconstructed Field Surface from Sampled Points')
    ax.set_xlabel('X')
    ax.set_ylabel('Y')
    ax.set_zlabel('Field Value')
    ax.set_xlim(-limit, limit)
    ax.set_ylim(-limit, limit)
    fig.tight_layout()
    fig.savefig(output_path, dpi=180)
    plt.close(fig)


def main():
    parser = argparse.ArgumentParser(description='Visualize a scattered scalar field as a 3D surface.')
    parser.add_argument('--input', required=True, help='CSV file with columns x,y,value')
    parser.add_argument('--output', required=True, help='Output image path, e.g. field_surface.png')
    parser.add_argument('--grid-size', type=int, default=180, help='Resolution of the rendered grid')
    parser.add_argument('--neighbors', type=int, default=8, help='Number of nearest points used by IDW')
    parser.add_argument('--power', type=float, default=2.0, help='IDW distance falloff power')
    args = parser.parse_args()

    x, y, values = load_points(args.input)
    make_plot(x, y, values, args.output, grid_size=args.grid_size, neighbors=args.neighbors, power=args.power)


if __name__ == '__main__':
    main()

Generator Script

The generate_examples.py orchestrates data creation, plotting, and calling the visualizer:

#!/usr/bin/env python3
from __future__ import annotations

import argparse
import csv
import subprocess
import sys
from pathlib import Path

import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt
import numpy as np


APP_DIR = Path(__file__).parent
EXAMPLES_DIR = APP_DIR / 'examples'
VISUALIZER = APP_DIR / 'visualize_field.py'


def clear_examples_directory(path: Path) -> None:
    path.mkdir(parents=True, exist_ok=True)
    for item in path.iterdir():
        if item.is_file() or item.is_symlink():
            item.unlink()


def cluster_specs():
    return [
        {"center": (-0.55, -0.35), "value": 1.35, "n": 40, "spread": 0.10},
        {"center": (0.55, -0.15),  "value": -1.30, "n": 40, "spread": 0.10},
        {"center": (0.00, 0.60),   "value": 0.75, "n": 40, "spread": 0.09},
    ]


def generate_three_clusters(seed: int = 42):
    rng = np.random.default_rng(seed)

    xs = []
    ys = []
    zs = []

    for spec in cluster_specs():
        cx, cy = spec['center']
        x = rng.normal(cx, spec['spread'], spec['n'])
        y = rng.normal(cy, spec['spread'], spec['n'])
        z = rng.normal(spec['value'], 0.05, spec['n'])
        xs.append(np.clip(x, -1.0, 1.0))
        ys.append(np.clip(y, -1.0, 1.0))
        zs.append(z)

    return np.concatenate(xs), np.concatenate(ys), np.concatenate(zs)


def generate_zero_grid_three_clusters(seed: int = 42):
    x_clusters, y_clusters, z_clusters = generate_three_clusters(seed=seed)

    base = np.linspace(-1.0, 1.0, 10)
    X, Y = np.meshgrid(base, base)
    x0 = X.ravel()
    y0 = Y.ravel()
    z0 = np.zeros_like(x0, dtype=float)

    x = np.concatenate([x0, x_clusters])
    y = np.concatenate([y0, y_clusters])
    z = np.concatenate([z0, z_clusters])

    return x, y, z


def write_csv(x, y, z, path: Path) -> None:
    with path.open('w', newline='') as f:
        writer = csv.writer(f)
        writer.writerow(['x', 'y', 'value'])
        writer.writerows(zip(x, y, z))


def make_scatter_plot(x, y, z, output_path: Path, title: str) -> None:
    fig = plt.figure(figsize=(7, 6))
    ax = fig.add_subplot(111)
    scatter = ax.scatter(x, y, c=z, s=28)
    ax.set_title(title)
    ax.set_xlabel('X')
    ax.set_ylabel('Y')
    ax.set_xlim(-1.0, 1.0)
    ax.set_ylim(-1.0, 1.0)
    fig.colorbar(scatter, ax=ax, label='Field Value')
    fig.tight_layout()
    fig.savefig(output_path, dpi=180)
    plt.close(fig)


def run_visualizer(csv_path: Path, output_path: Path, grid_size: int, neighbors: int, power: float) -> None:
    subprocess.run(
        [
            sys.executable,
            str(VISUALIZER),
            '--input', str(csv_path),
            '--output', str(output_path),
            '--grid-size', str(grid_size),
            '--neighbors', str(neighbors),
            '--power', str(power),
        ],
        check=True,
    )


def render_example(name: str, x, y, z, grid_size: int, neighbors: int, power: float) -> None:
    csv_path = EXAMPLES_DIR / f'{name}.csv'
    scatter_path = EXAMPLES_DIR / f'{name}_scatter.png'
    surface_path = EXAMPLES_DIR / f'{name}_surface.png'

    write_csv(x, y, z, csv_path)
    make_scatter_plot(x, y, z, scatter_path, title=f'Sampled Points: {name}')
    run_visualizer(csv_path, surface_path, grid_size=grid_size, neighbors=neighbors, power=power)
    print(f'Created {csv_path.name}, {scatter_path.name}, and {surface_path.name}')


def main() -> None:
    parser = argparse.ArgumentParser(
        description='Generate example datasets, scatter plots, and reconstructed surface images.'
    )
    parser.add_argument(
        '--example',
        choices=['all', 'three_clusters', 'zero_grid_three_clusters'],
        default='all',
        help='Which example set to generate',
    )
    parser.add_argument('--cluster-seed', type=int, default=42, help='Seed for the cluster-based examples')
    parser.add_argument('--grid-size', type=int, default=180, help='Resolution of the rendered grid')
    parser.add_argument('--neighbors', type=int, default=8, help='Number of nearest points used by IDW')
    parser.add_argument('--power', type=float, default=2.0, help='IDW distance falloff power')
    args = parser.parse_args()

    clear_examples_directory(EXAMPLES_DIR)

    if args.example in ('all', 'three_clusters'):
        x, y, z = generate_three_clusters(seed=args.cluster_seed)
        render_example(
            name='three_clusters',
            x=x,
            y=y,
            z=z,
            grid_size=args.grid_size,
            neighbors=args.neighbors,
            power=args.power,
        )

    if args.example in ('all', 'zero_grid_three_clusters'):
        x, y, z = generate_zero_grid_three_clusters(seed=args.cluster_seed)
        render_example(
            name='zero_grid_three_clusters',
            x=x,
            y=y,
            z=z,
            grid_size=args.grid_size,
            neighbors=args.neighbors,
            power=args.power,
        )

    print(f'Finished. Outputs are in: {EXAMPLES_DIR}')


if __name__ == '__main__':
    main()

Download Project

Download the complete project, including Python scripts, CSV files, visualizations, and this web page:
